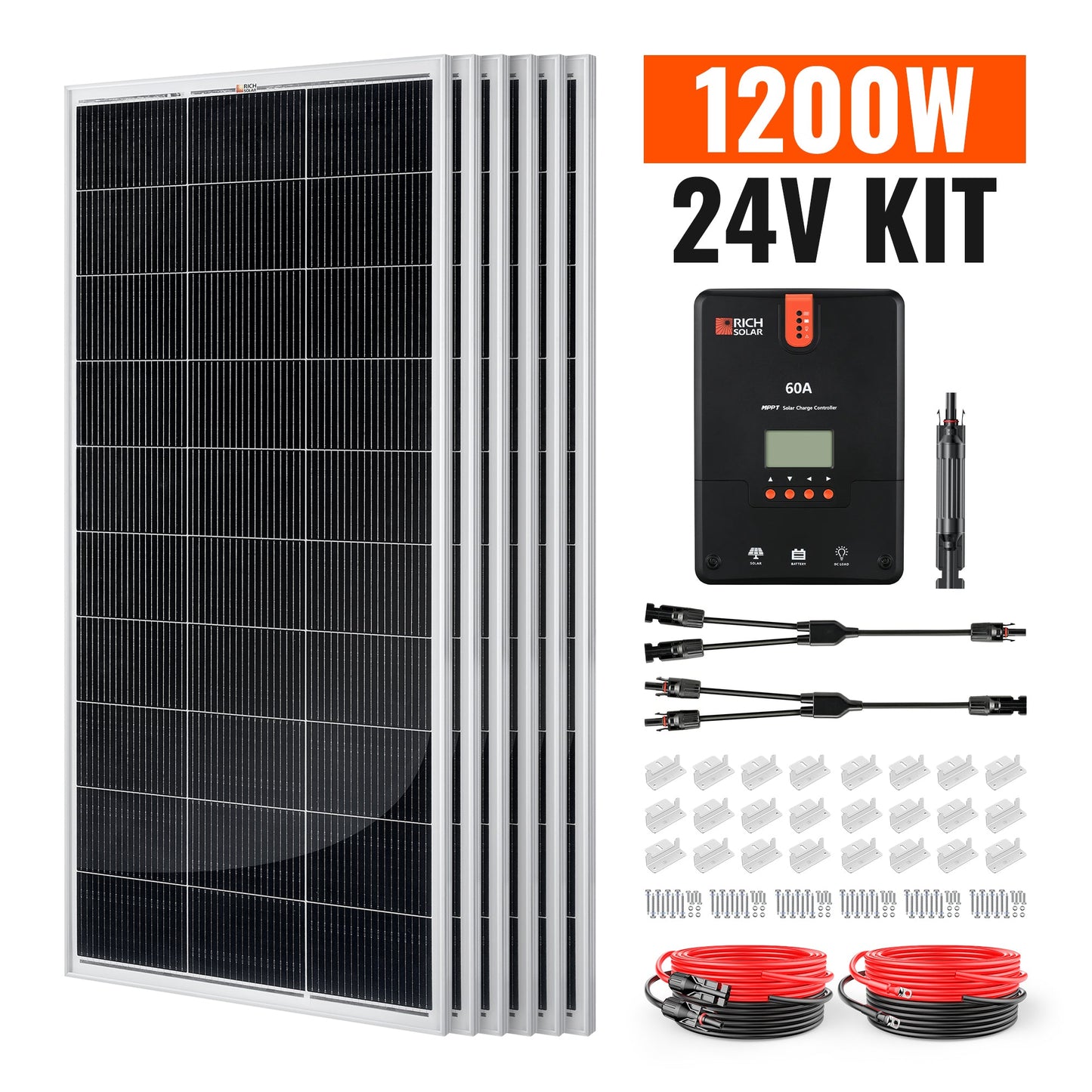

1200 Watt Solar Kit, 24V, 6x200W Panels + 60A MPPT

Price: $1,899.99. Condition: New. Brand: RICH SOLAR.

Utilization

This solar kit can be useful for RVs, trailers, vans, boats, cabins, sheds, off-grid backup, and remote worksites. 1200 Watt Solar Kit, 24V, new, brand RICH SOLAR.

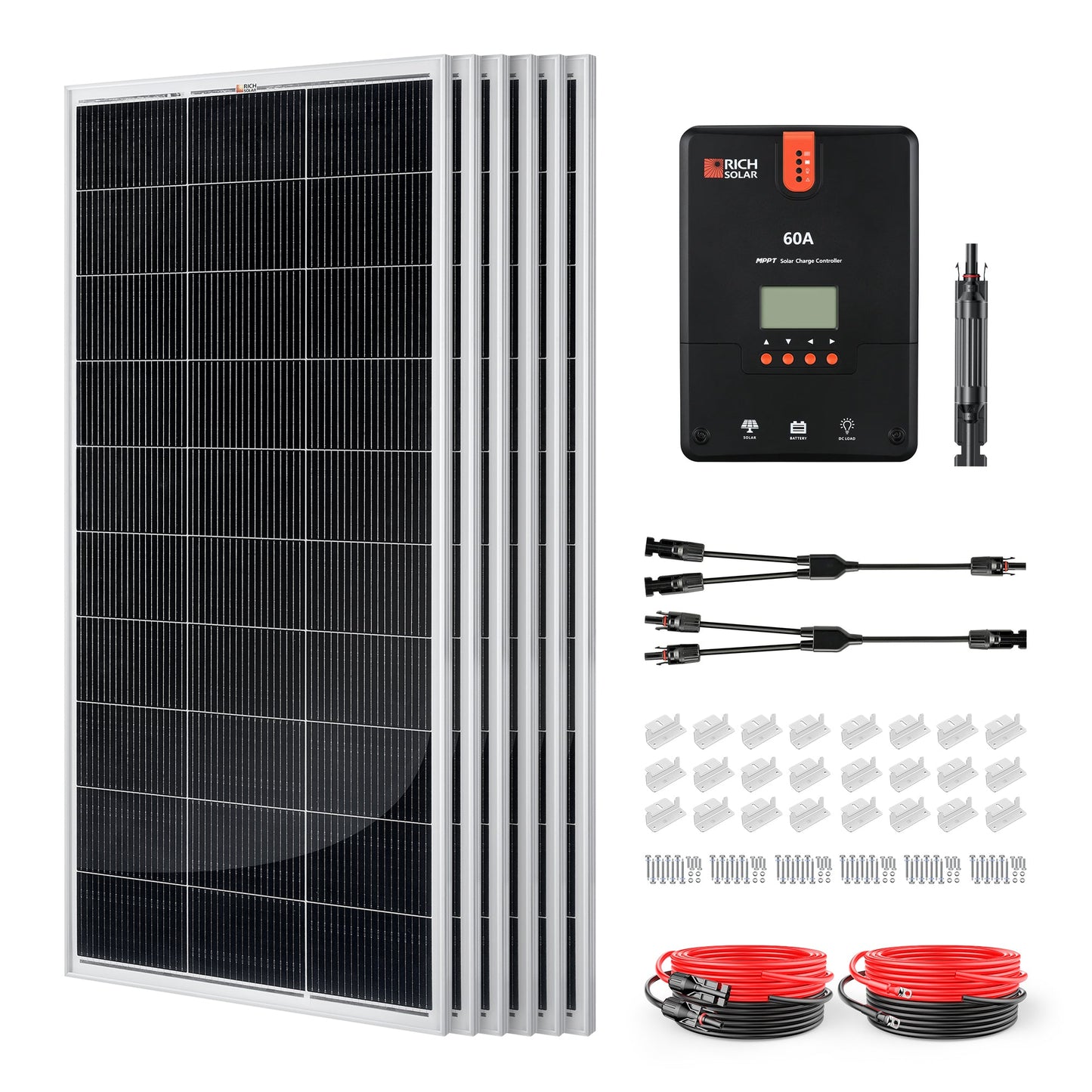

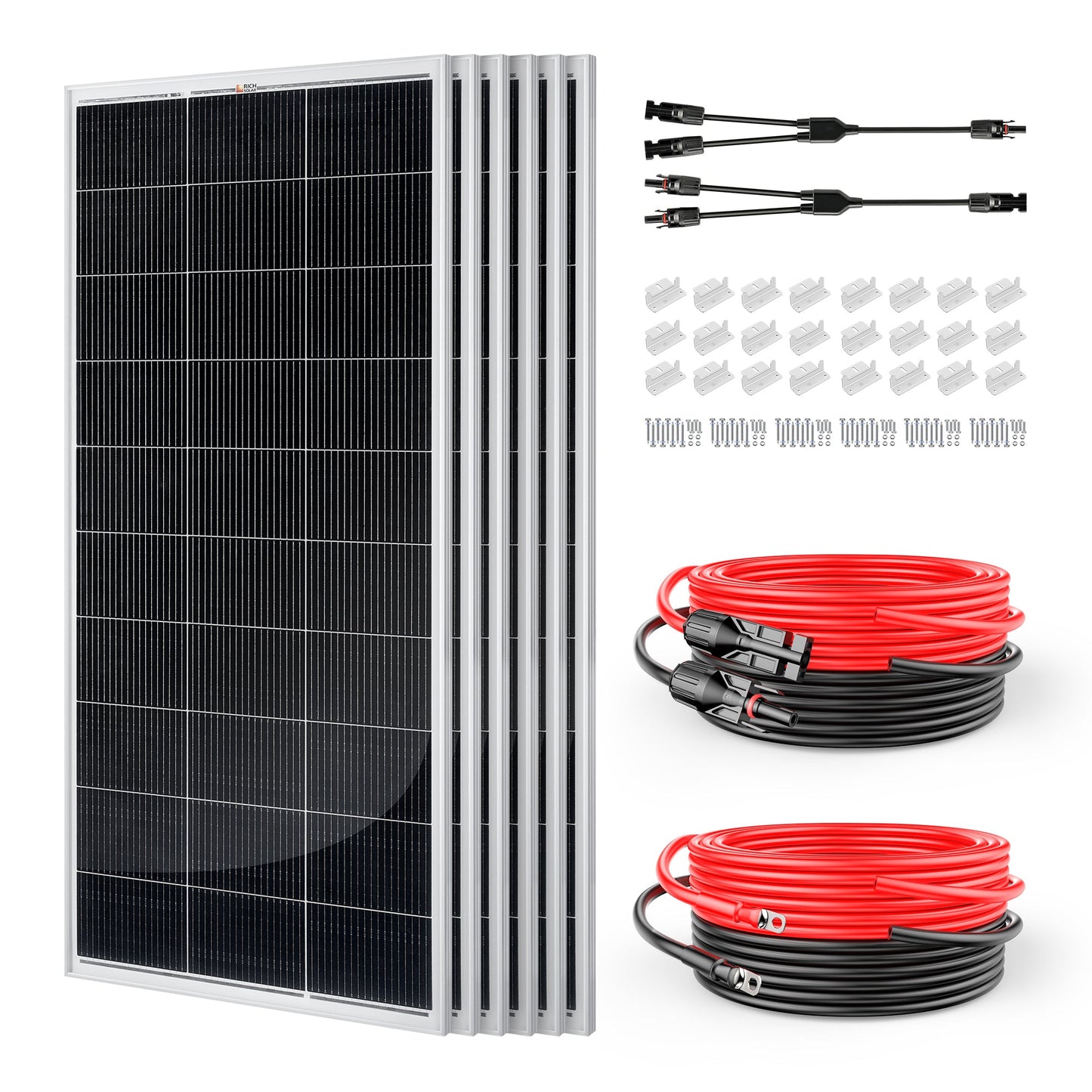

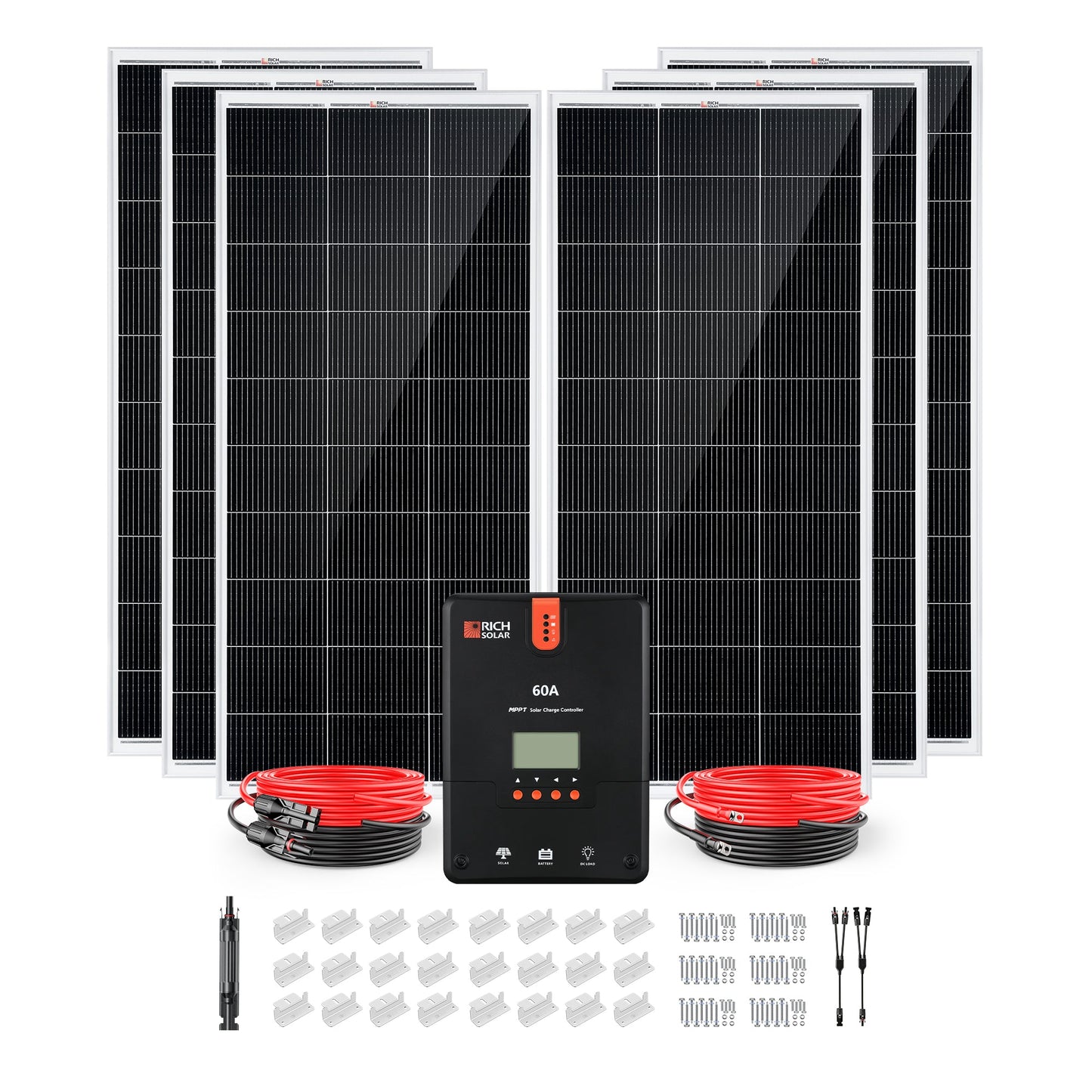

What you get

6 x 200 Watt Monocrystalline Solar Panel, model RS-M200.
1 x 60A MPPT Solar Charge Controller, model RS-MPPT60.
1 x 20 ft #10 AWG Solar Cable red, model RS-20101, panel to controller.
1 x 20 ft #10 AWG Solar Cable black, model RS-20101, panel to controller.
1 x 10 ft #8 AWG Battery Cable red, model RS-810, controller to battery.
1 x 10 ft #8 AWG Battery Cable black, model RS-810, controller to battery.
6 x Mounting Z Brackets, one set of 4, model RS-ZB4C.
1 x 30A Inline Fuse Holder with fuse, model RS-SC30F.
1 x Y Branch Parallel Adapters, model RS-Y2.

Batteries and Inverter are not included.

Panel features

High efficiency mono cells with 18 busbars.
Generates 10.9A per panel. Charges 12V batteries.
3 ft quick-connect cables with connectors. Works in series or parallel.
Strong low-light performance in mornings, evenings, and cloudy days.
Anti reflective tempered glass and anodized aluminum frame.
Fourteen predrilled holes for fast installation.
Compatible with Z-brackets, ground mounts, side pole mounts, and tilt mounts.

Panel specifications

Maximum power Pmax 200W per panel.
Vmp 18.4V. Imp 10.9A. Voc 21.8V. Isc 11.6A.
Temperature range minus 40 to 185°F.
Maximum series fuse rating 15A.
Weight 24 lb per panel.
Dimensions 58.7 x 26.8 x 1.2 in per panel.
Total array wattage 1200W. Count 6 panels.

Charge controller features

Auto detects 12V, 24V, 36V, 48V systems.
Supports Sealed, Gel, Flooded, and Lithium batteries.
MPPT tracking efficiency up to 99 percent. Peak conversion efficiency 98 percent.
Protection for reverse polarity, overcharge, overdischarge, overload, short circuit, and reverse current.
LCD screen and LED indicators show status, parameters, and error codes.
Load control available. Recovers overdischarged lithium batteries.
Die cast aluminum housing for heat dissipation.
RS232 port supports BT-1 Bluetooth module.

Charge controller specifications

Rated battery current 60A. Rated load current 20A.
Max PV input voltage 150V at 77°F. 145V at minus 13°F.
Max PV input power 800W at 12V. 1600W at 24V. 2400W at 36V. 3200W at 48V.
Charge circuit voltage drop 0.26V or less.
Discharge circuit voltage drop 0.15V or less.
Operating temperature minus 31 to 113°F.
Max terminal size under 11 mm.
Overall dimensions 11.2 x 8.1 x 3.7 in. Net weight 7.94 lb.

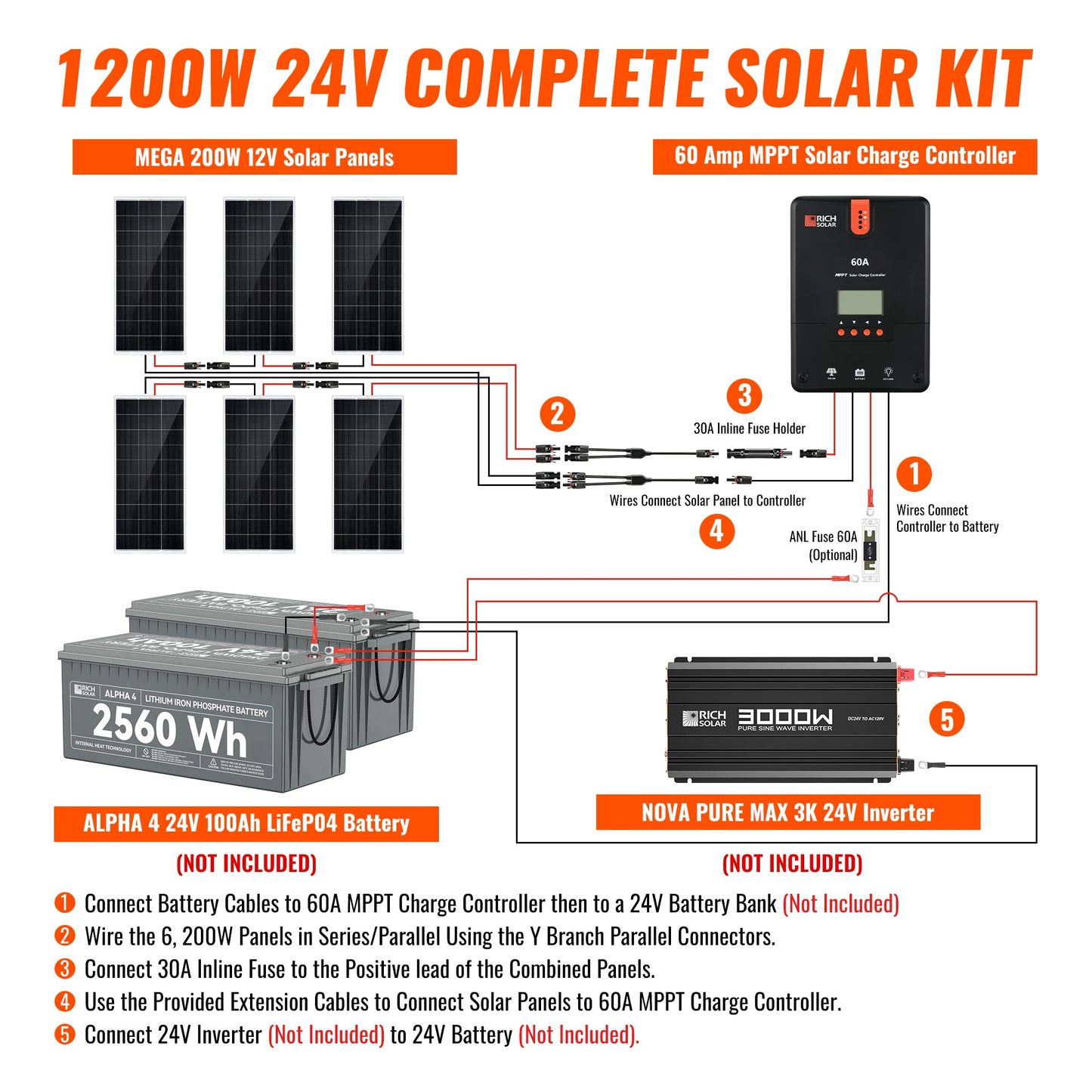

Installation

Mount with included Z brackets or compatible ground, pole, or tilt mounts.
Connect panels to controller with #10 AWG cables.
Connect controller to battery with #8 AWG cables.
Use with on-grid or off-grid inverters as needed.

Warranties

Panels power output limited warranty 25 years.
Panels workmanship warranty 10 years.
Controller warranty 2 years.
